Pin HV Insulators Epoxy Resin Polymer 12KV 65X140

Name: Pin HV Insulators Epoxy Resin Polymer 12KV 65X140
Brand: DOWE
Price: 2.39 USD

Quality Pin HV Insulators Epoxy Resin Polymer 12KV 65X140 wholesale

Brand Name : DOWE

Model Number : ZJ-10Q

Certification : SGS ROHS REACH CE

Place of Origin : China

MOQ : 40pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Price : USD2.39/PC

Supply Ability : 500PCS/CTNS

Delivery Time : 2-7days

Packaging Details : CARTON

Product name : High voltage Contact box

Model : ZJ-10Q

Height : 65mm

A/F : 140mm

Material : Epoxy Resin

Insert : Steel coating Brass

Customized : OEM

Certificate : CE,ROHS,REACH

Contact Now

Pin Insulator High Voltage 65x140

Pin HV Insulators Epoxy Resin Polymer 12KV 65X140

Epoxy Resin Insulator

DOWE is the China supplier for DMC/SMC/Epoxy resin insulator for low voltage and high voltage electrical application.
 There are thoustands of busbar insulator and busbar clip,height from 16mm to 380mm,voltage is from 660V to 40.5KV according
 IEC60439.Metric insulator and GB insulator according customizer’s necessary.

 CE,SGS,ELV for insulator,UL for material.

Brand Name	DOWE
Model Number	10KV 65X140
Application	High Voltage
Rated Voltage	10KV
Tensile Strength	8000N
Product Name	high voltage insulator
Material	Epoxy resin
Torgue strength(FT LBS)	20N
Color	customized

Name	Model	Voltage	Diameter(mm)	Height(mm)	Brand
M.V Insulator	EL-3M 70X60	3.6KV	70	60	DOWE
M.V Insulator	EL-6M 70X90	7.2KV	70	90
H.V Insulator	ZJ-80X90	12KV	80	90
	ZJ-65X130		65	130
	ZJ-65X140		65	140
	ZJ-70X142		70	142
	ZJ-75X130		75	130
	ZJ-85X140		85	140
	ZJ-85X145		85	145
	ZJ-85X150		85	150
	ZJ-85X170		85	170
	ZJ-100X130		100	130
	ZJ-100X140		100	140
	ZJ-70X210	24KV	70	210
	ZJ-70X225		70	225
	ZJ-75X210		75	210
	ZJ-75X225		75	225
	ZJ-110X190		110	190
	ZJ-110X210		110	210
	ZJ-110X225		110	225
	ZJ-110X240		110	240
	ZJ-130X340	40.5KV	130	340
	ZJ-130X360		130	360
	ZJ-130X380		130	380
	ZJ-145X320		145	320
	ZJ-145X340		145	340
	ZJ-145X360		145	360
	ZJ-145X380		145	380

Pin HV Insulators Epoxy Resin Polymer 12KV 65X140

Product Tags:

Pin HV Insulators 65X140

HV Insulators Epoxy Resin 12KV

polymer pin insulator

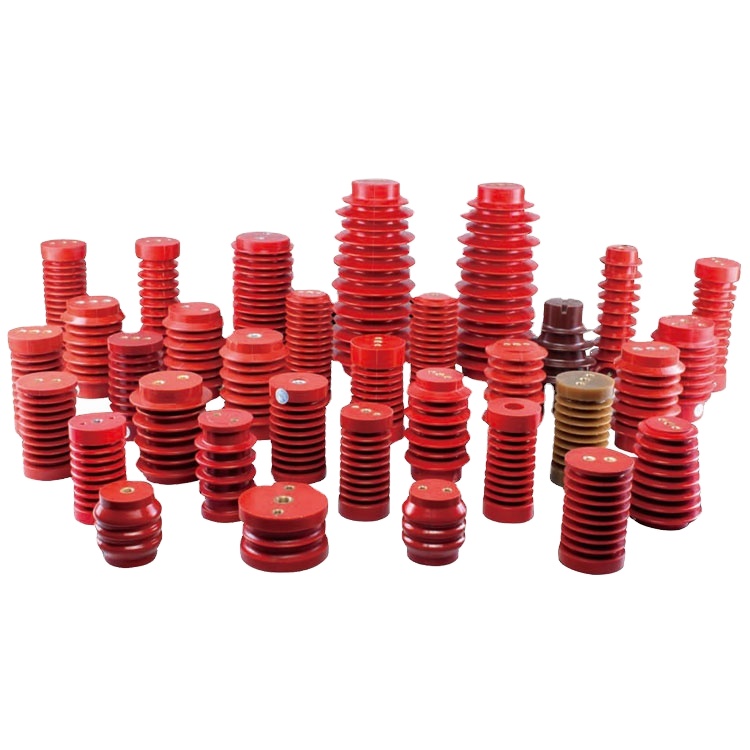

Pin HV Insulators Epoxy Resin Polymer 12KV 65X140 Images
